"LED Video panels have been a game changer."

From concert to corporate audiovisual production, LED technology has revolutionized how we present content to our audiences. No longer are we confined to pre-determined aspect ratios or governed by ambient light or rain. We now have complete creative freedom to offer high impact visuals.

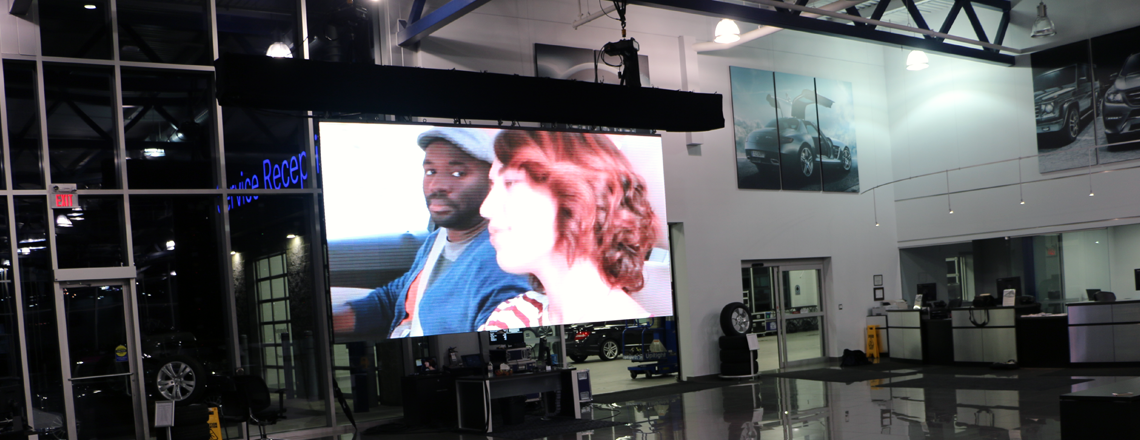

LED Panels are compromised of hundreds of individual pixels (RGB) that physically lock together to create seamless images. There are no bezels around the outer edges of the panels. If you want to hang individual rows of panels, create a LED Video stage skirt, stack them in front of your podium or hang them together to create a large image, the design is up to you. Even with direct sunlight exposure, the visuals will still shine bright. (Notice the sodium lighting in the photograph to the left)



LED Panel Specifications

 10MM (PIXEL PITCH - SPACE INBETWEEN PIXELS) Panels Featured IN PICTURE.

10MM (PIXEL PITCH - SPACE INBETWEEN PIXELS) Panels Featured IN PICTURE.

8MM Panel (model: oD8.0)

  • Size: 25.2" x 25.2" x 3.7" (640mm x 640mm x 93mm)
  • Weight: 22 Lbs. (10 Kg)
  • Aluminum Frame
  • IP65 Water and Dust Rating
  • 120 Degree Viewing Angle
  • Panel Pixel Density: 80 x 80 pixels
  • Refresh Rate: 2000 Hz.
  • Working Temperature: -20 to +50 Degrees Celsius
  • Switch-mode Power Supply (110V or 220V)
  • CSA Inspected & Approval



10MM Panel (model: oD10)

  • Size: 25.2" x 25.2" x 4.8" (640mm x 640mm x 123mm)
  • Weight: 27.6 Lbs. (12.5 Kg)
  • Die Cast Aluminum Frame
  • IP65 Water and Dust Rating
  • 140 Degree Viewing Angle
  • Panel Pixel Density: 64 x 64 pixels
  • Refresh Rate: 2400 Hz.
  • Working Temperature: -20 to +50 Degrees Celsius
  • Switch-mode Power Supply (110V or 220V)
  • CSA Inspected & Approval
